AC Motor TN90L 2 Pole 2,2kW 3000RPM B14 Flange
Article number 2450
Not in stock
Keep me updated
Unfortunately, the product is currently sold out. Leave your details and you'll receive an e-mail when it's back in stock.
| General conditions | ||
| Quantity 3 - > | 5,00 % on the retail price of €392,00 | €372,40 |
| Quantity 5 - > | 10,00 % on the retail price of €392,00 | €352,80 |
€392,00
Excluding VAT
Price per piece
Description
Attachments
Discount
Compatible Products
Series of standard IEC motors with three-phase power supply, cl. F insulation and IP55 protection class (or IP54 in the larger sizes). Characterized by a high degree of reliability, they can be used in countless application solutions. Without a VFD it will run 2880rpm continuously, and with a VFD you can run from 0-2880RPM. Keep in mind that below 300RPM you have very little torque.
Component features:
-
Not available from stock, leadtime 1-2 weeks after order
-

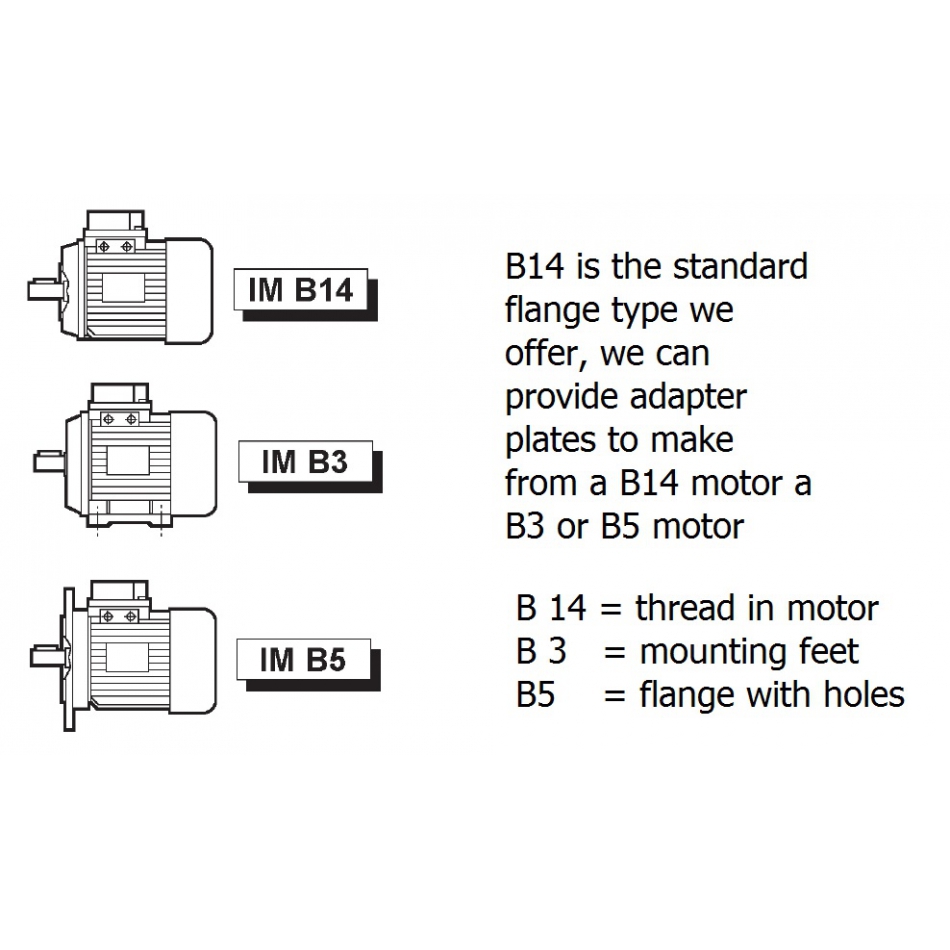

Standard B14 Flange optional B3/B5 Adapters
-
High quality product made in Italy by MT
-

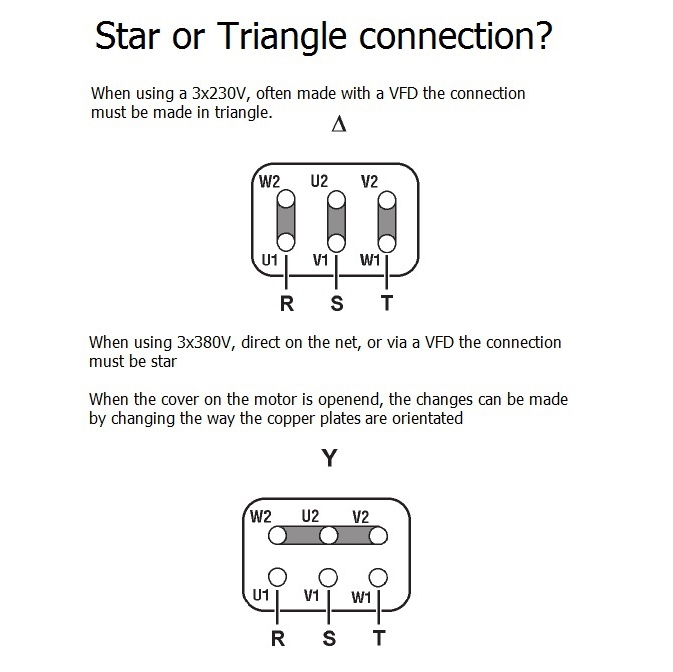

Standard both 230V (Triangle) or 380V (Star)
-
Motors are complient to IE3 norm
-

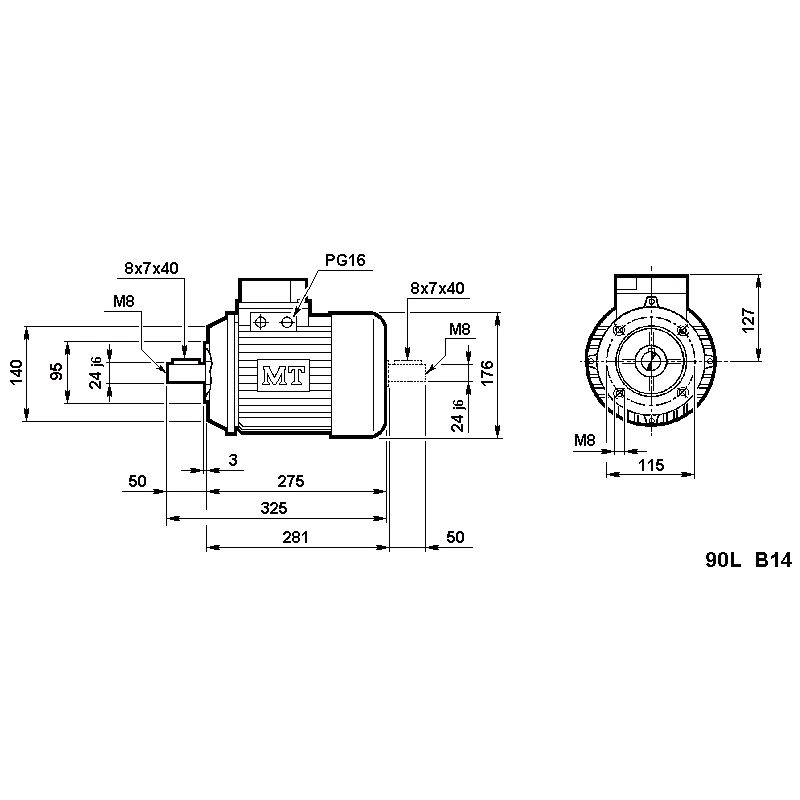

Frame size: TN90L
-
Nominal power: 2.2kW
-
Nominal speed: 2880rpm
-
Nominal current: 4.9A
-
Nominal torque: 7.3Nm
-
Peak torque: 28.5Nm
-
Weight: 17.5kg
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
2450-1 AC Motor TN90L 2 Pole 2,2kW 3000RPM B14 Flange STEP214 |
|
2450-2 AC Motor TN90L 2 Pole 2,2kW 3000RPM B14 Flange STEP242 |
 |
2450-3 AC Motor TN90L 2 Pole 2,2kW 3000RPM B14 Flange datasheet |
|
2450-4 MT Motors Catalogue IE3 |
