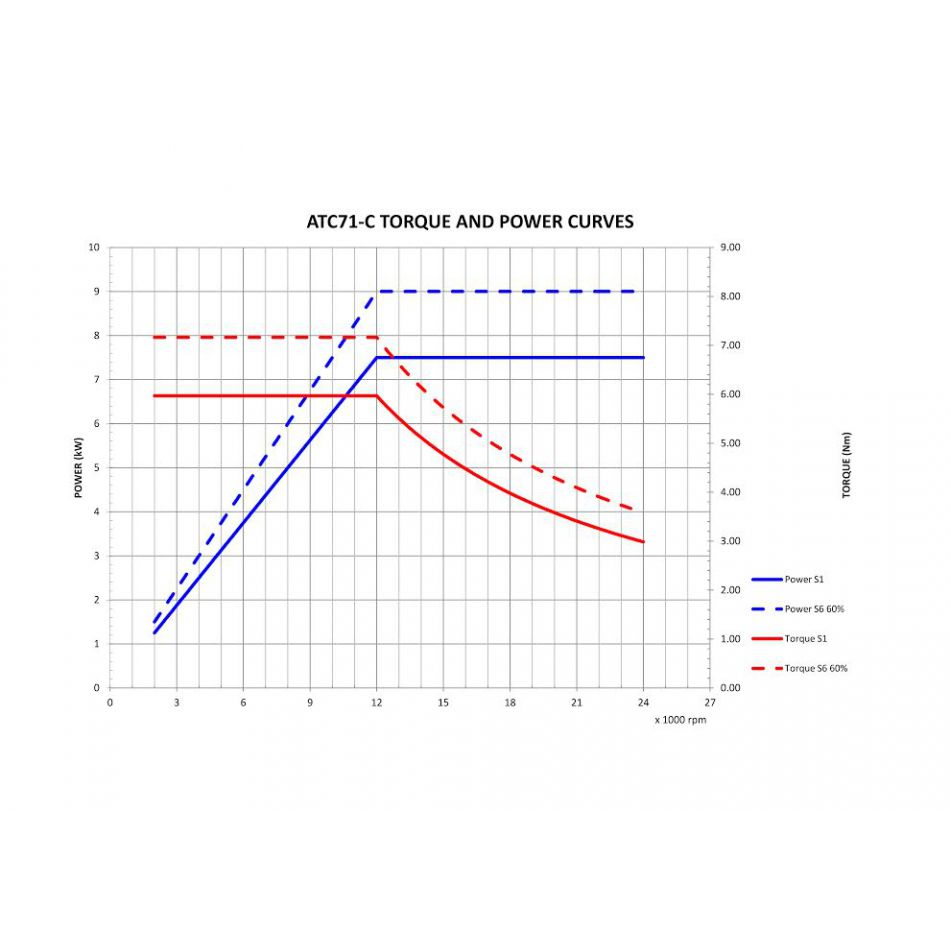

Automatic Toolchanger ATC71-C-ISO30-LN S1(7.5kW)S6(9.0kW) 12krpm max24krpm

Article number 3522
TeknoMotor
Limited stock Limited stock
General conditions
Numbers 3 - > 5,00 % on the retail price of € 3.599,99 € 3.419,99
Numbers 5 - > 10,00 % on the retail price of € 3.599,99 € 3.239,99
3.599,99 Excluded VAT Price per piece
Description
Attachments
Discount
Compatible Products
The electrospindles series ATC71 have been designed to develop high power with limited overall dimensions. This type of electrospindle is suitable to be installed on automatic machines for machining wood, aluminum and plastics. Thanks to the stiffness of the mechanical components, the speed of tool changing and the quality of electrical components of this electrospindle. Teknomotor wanted to offer a best in class product for the most demanding customers. This version is equipped with ISO30. Also its the Long Nose (LN) Model. The LN is often requested by clients who make a dust extraction around the motor, the round shape makes this easier.We also offer all the required parts to run the ATC motor. So items such as VFD, toolholder, cabling.

Component features:
  • Long Nose Model
  • Stator: three-phase induction motor, insulation class F.
  • Rotor: copper squirrel cage
  • Frame: closed frame is obtained from an extruded aluminum bar.
  • Ventilation: electric fan cooling
  • Degree of Protection: IP54
  • Balancing: executed according to ISO 1940: balancing grade 2.5. For special applications we can supply motors balanced with lower grades.

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

3522_ATC-C-ISO30-LN_Drawing_2D.pdf 3522 ATC-C-ISO30-LN Drawing 2D
3522_Handbook_ATC71.pdf 3522 Handbook ATC71
3522_ATC71-C-ISO30-LN_STEP214.stp 3522 ATC71-C-ISO30-LN STEP214
