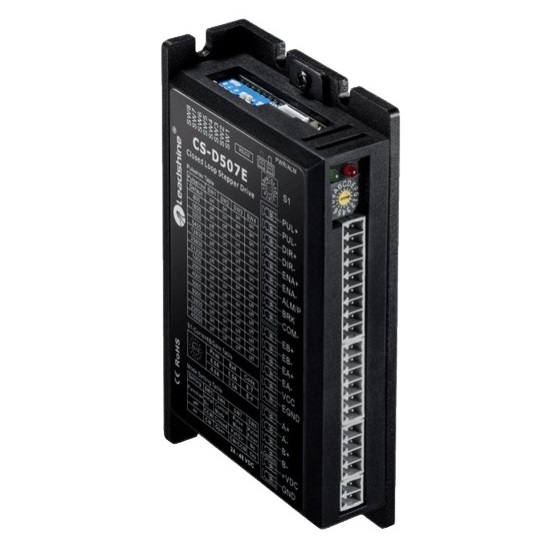

Closed Loop Stepper Drive CS-D507E 50V 7,0A (2phase)

Article number 6018
Leadshine
In Stock In Stock
General conditions
Quantity 5 - > 5,00 % on the retail price of 90,00 85,50
Quantity 10 - > 10,00 % on the retail price of 90,00 81,00
Quantity 50 - > 15,00 % on the retail price of 90,00 76,50
Quantity 100 - > 20,00 % on the retail price of 90,00 72,00
90,00 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products
The CS-D507E can power 2-phase NEMA23 Leadshine stepper motors with incremental encoders. Compared to traditional open loop stepper systems, a CS-D507E adopted closed loop stepper system can eliminate potential loss of step, make real-time position error correction and do not need torque reservation. Also it can power the driven stepper motor with reduced heating, lower noise and less vibration.

Component features:
  • Step & Direction (PUL/DIR) or CW/CCW (double pulse) control
  • Supply voltage: 20-50VDC
  • Output current: 0.5-7.0A
  • 5V / 24V control signal voltage setting by DIP switch, default is 24V
  • Max pulse input frequency: 500kHz (5V control signal) or 200kHz (24V control signal)
  • 15 microstep settings of 200-51.200 via software or 800-51.200 via DIP switches
  • Optically isolated inputs
  • Fault output and Brake output
  • Over-voltage and over-current protections, position following error, etc.
  • Compatible with ES series
  • Enhanced performance, especially at low speed applications (<60rpm)
  • CE certified and RoHS compliant
