DCNC Retraction System Wheel 100mm
Article number 5943
DamenCNC
In Stock
€450,00
Excluding VAT
Price per piece
Description
Attachments
Compatible Products

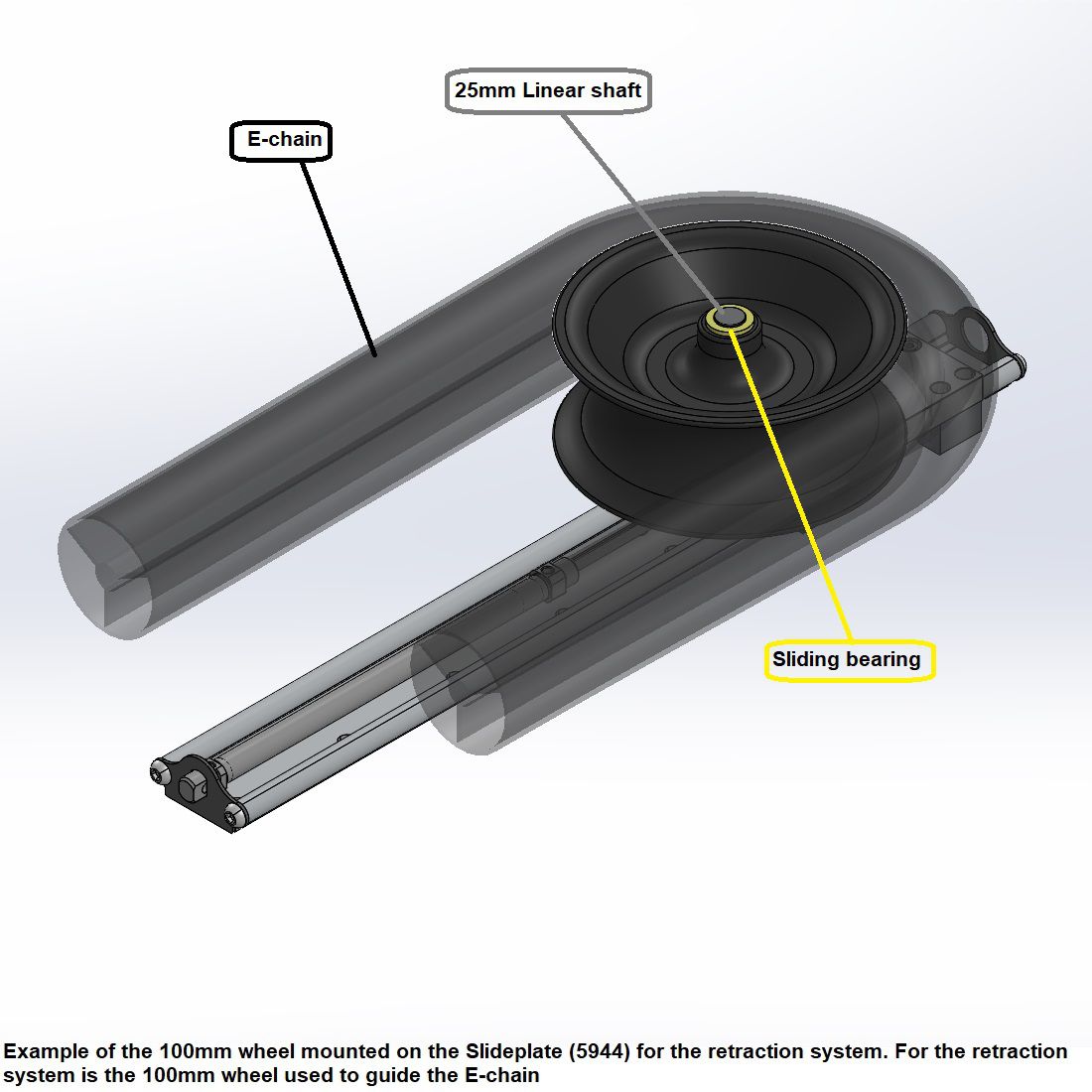

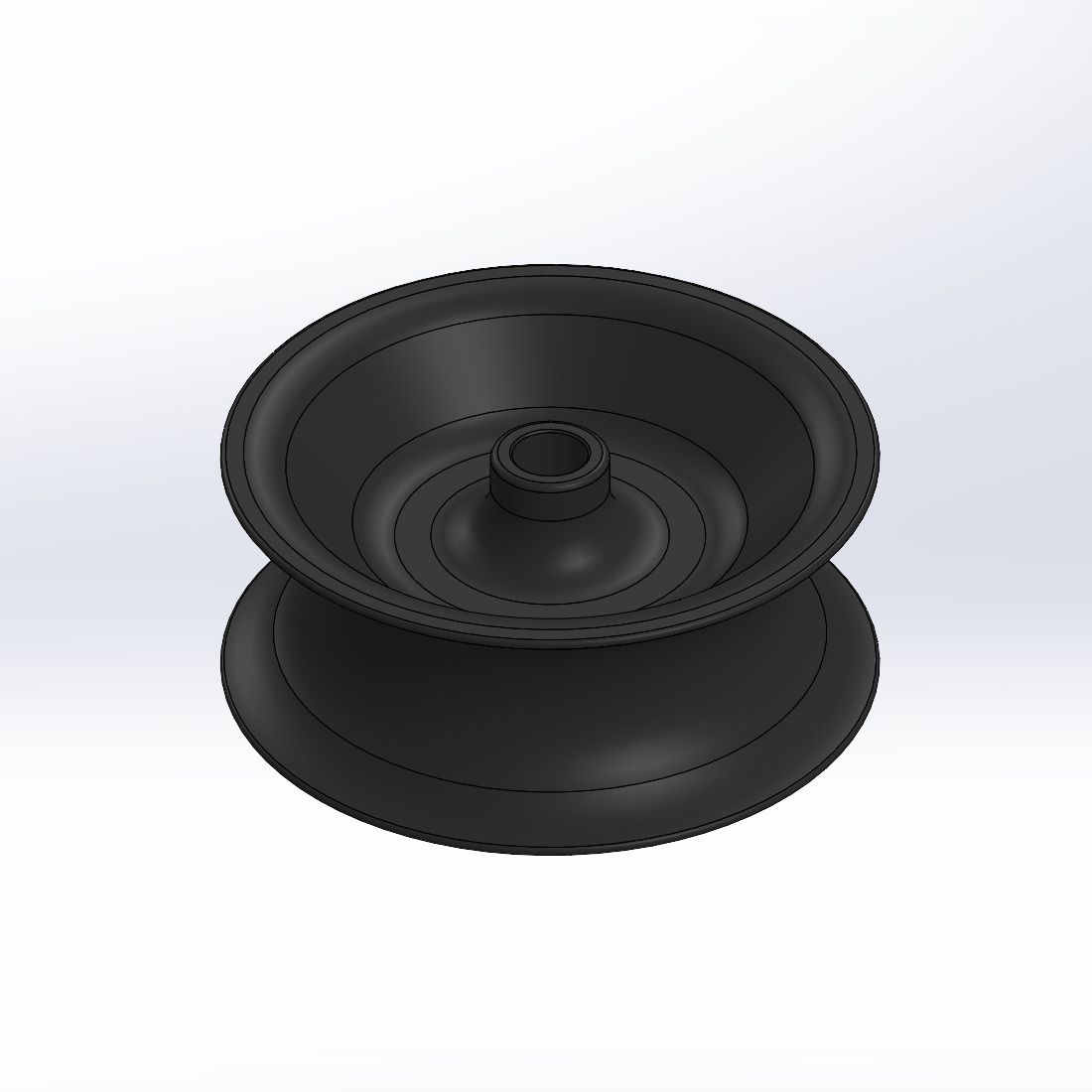

The wheel is designed for the retraction system (5865/5870), where it serves as a guide for the E-chain. The wheel is designed to be mounted on a 25mm axle using a sliding bearing (5954).
It is recommended to use the wheel with a sliding bearing (5954), for a long service life.
Component Features:
- Designed for 5865/5870 Retraction System
- Material: PA-6, black
- Dimensions: 276x110mm
- Plain bearing recommended (5954)
- Inner diameter: 32mm H7
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
5943-1 DCNC Retraction System Wheel 100mm STEP214 |
 |
5943-2 DCNC Retraction System Wheel 100mm STEP242 |
 |

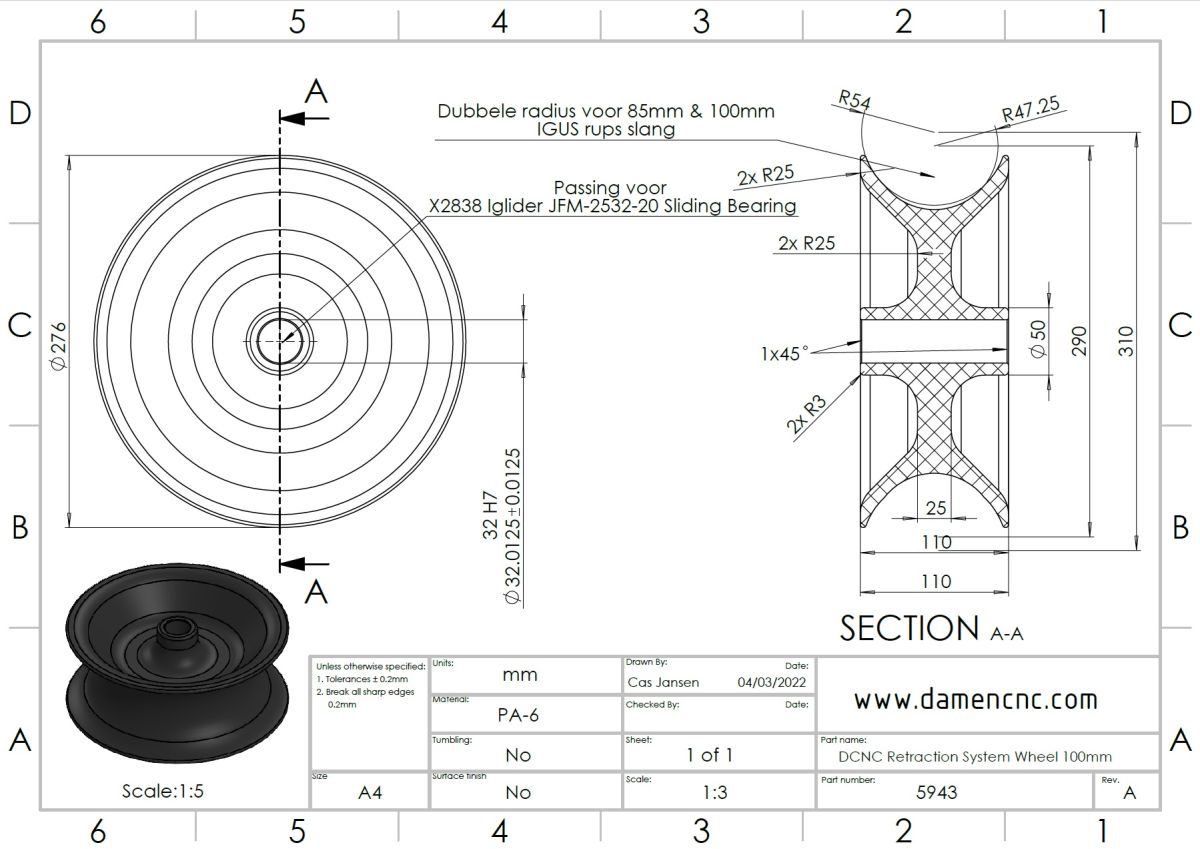

5943-3 DCNC Retraction System Wheel 100mm 2D Dimensions |
