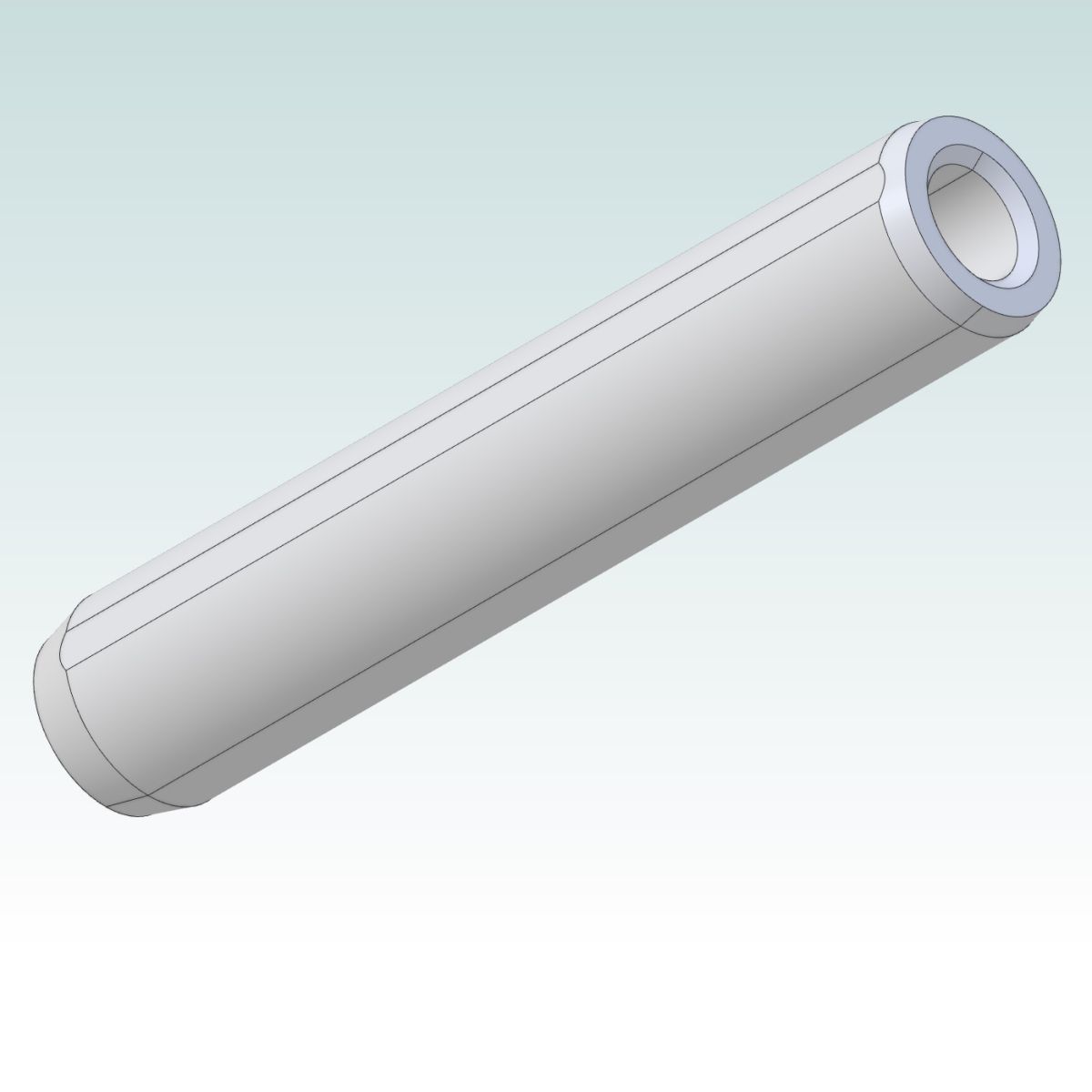

Ø6m6 x 32 Dowel Pin DIN7979D ISO8735A with Internal Thread (m4x0.7)
Article number 5437
In Stock
| General conditions | ||
| Quantity 50 - > | 50,00 % on the retail price of €2,99 | €1,50 |
EAN-number 8715492801135
€2,99
Excluding VAT
Price per piece
Description
Attachments
Discount
Compatible Products
Dowel pin, hardened and ground, with internal thread. Which is handy for being able to remove it later.
Component features:
- Outside Diameter: 6m6
- Length: 32mm
- DIN: 7979D
- ISO: 8735A
- Internal thread: m4x0.7
- Minimum outside diameter: 6.004mm
- Maximum outside diameter: 6.012mm
- Sales quantity for discount: 50 pieces
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
5437-1 Ø6m6 x 32 Dowel Pin DIN7979D ISO8735A with Internal Thread (m4x0.7) STEP214 |
|
5437-2 Ø6m6 x 32 Dowel Pin DIN7979D ISO8735A with Internal Thread (m4x0.7) STEP242 |
 |

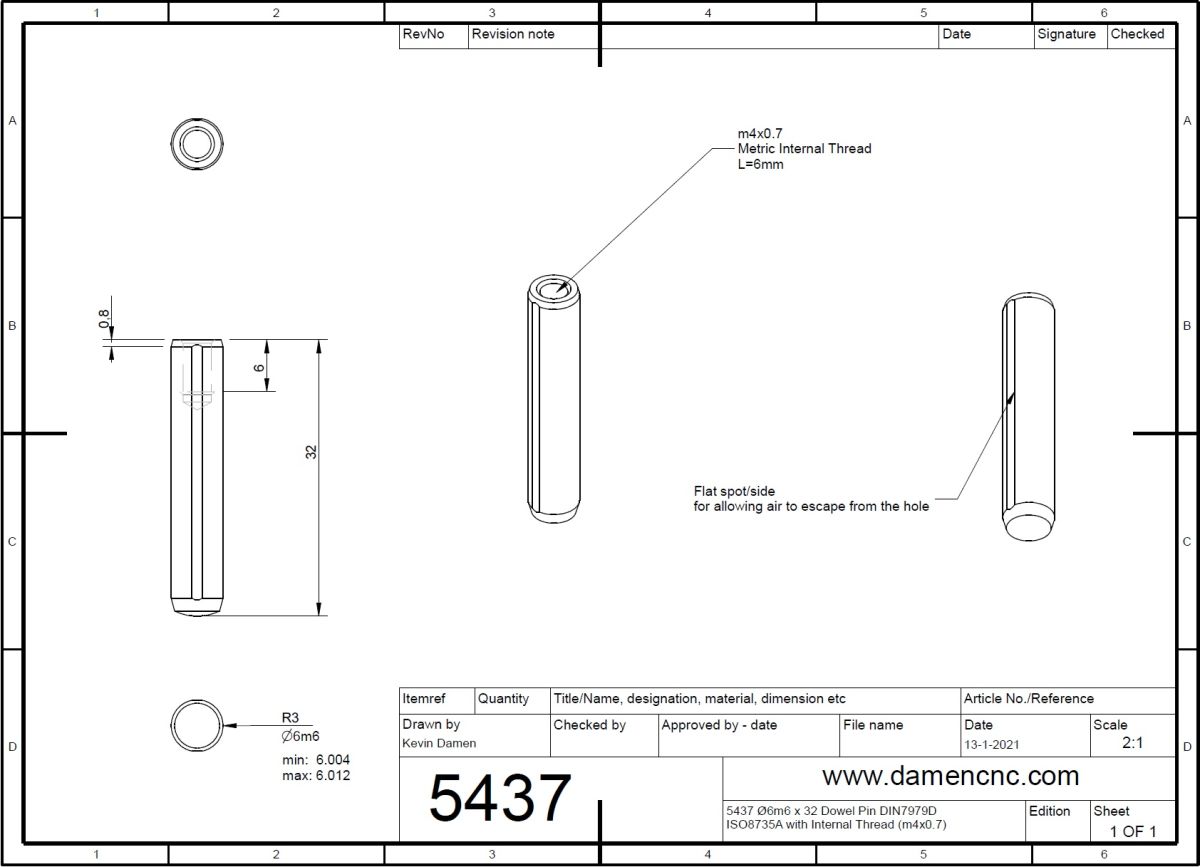

5437-3 Ø6m6 x 32 Dowel Pin DIN7979D ISO8735A with Internal Thread (m4x0.7) 2D Dimensions |
