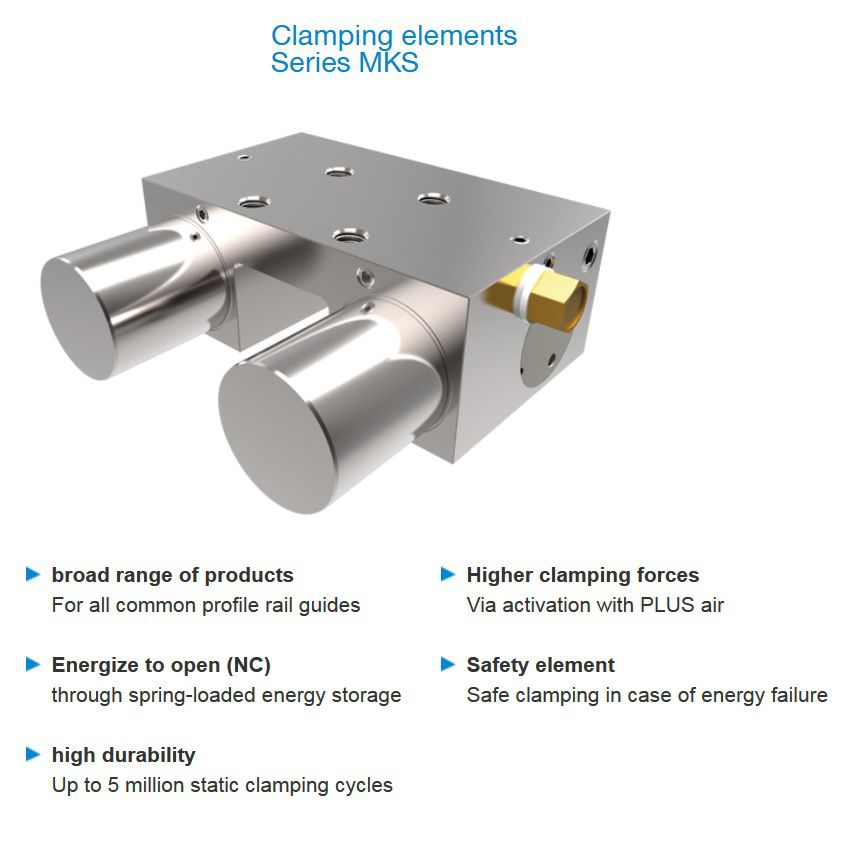

Pneumatic Clamping Element MKS2001A

Article number 3275
Not in stock Not in stock
319,99 Excluded VAT
Pneumatic Clamping Element which is compatible with the HIWIN HGR series rails and carriages. The brake is spring loaded. Which means pneumatics need to be added/present to release the brake. This is normally done with a 5/2 Valve. This MKS type is made to hold a carriage in place, it is not suitable for active braking. In case you need this type, consult us for more information. There are models which are suitable for active braking.

Component features:
  • Leadtime 1-2 weeks
  • Energize to open (NC) through spring-loaded energy storage
  • high durability Up to 5 million static clamping cycles
  • Safety element Safe clamping in case of energy failure
  • Broad range of products For all HIWIN rail guides


Here you can find all attachments that are linked to the product. Click on the icon to download.

3275_Zimmer_MK_MKS_MKR_MKRS_Clamping_elements_Installation_and_Operating_Instructions.pdf 3275 Zimmer MK MKS MKR MKRS Clamping elements Installation and Operating Instructions
