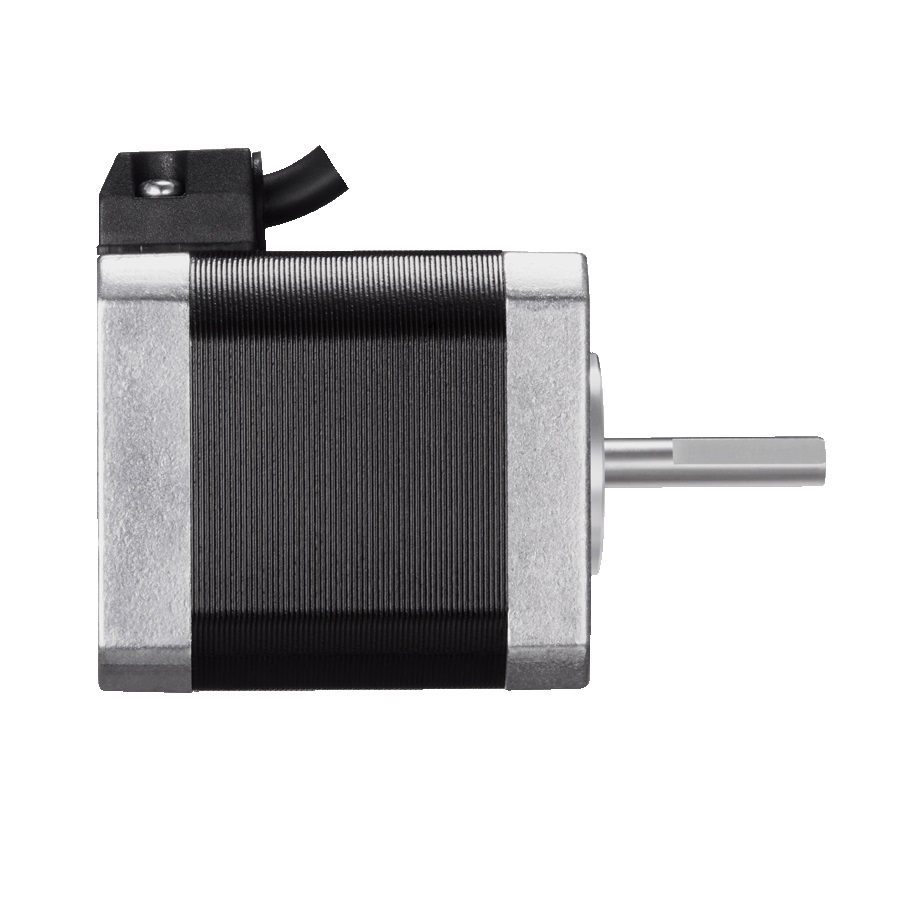

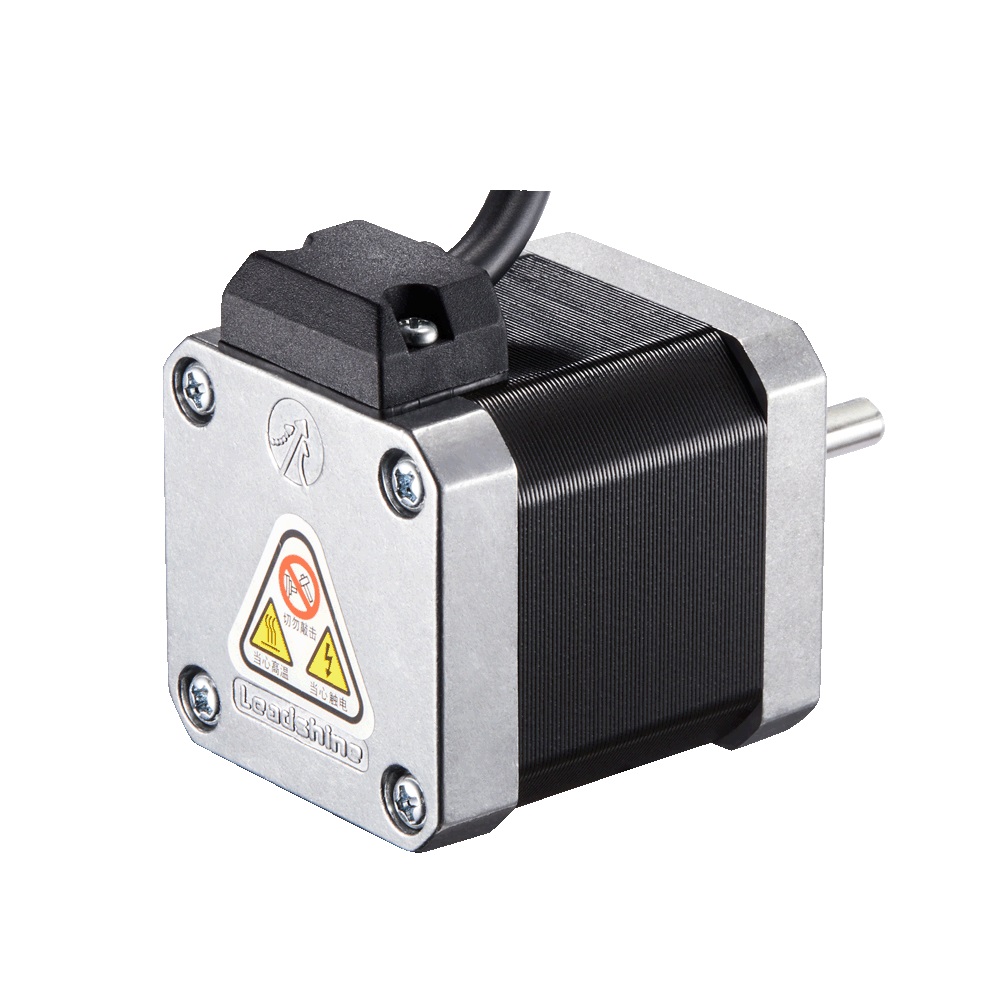

Stepper Motor NEMA17-0.8Nm 42CM08 (2-phase)

The steppermotors have been selected to work well with the stepper motor drivers we offer. (EM422S). Built with high quality materials including bearings and shaft made by Japanese manufacturers. High precision, low motor heating, and low vibration.

Component features:

• The motor has been specially selected to work well with our range of Leadshine controls
• Built with high quality materials, including bearings and axle, made by Japanese manufacturers
• High precision, low motor heating, and low vibration.
• NEMA 17 Flange Size (42.3x42.3mm)
• Motor length: 60mm (2.36 inches)
• Holding torque (Nm): 0.8Nm (114 oz-in)
• Phase current (A): 2.5A
• Shaft diameter (mm): 5mm (0.197inch)
• Center diameter (mm): 22mm
• IP rating: IP40
• Phase resistance (ohm): 1 Ohm
• Inductance (mH): 2.4 mH
• Rotor Inertia (kg/cm2): 0.11 kg/cm2
• Weight: 0.5kg
• See data sheets for details
