ZX-Speed 3D Tool Setting Probe (Including cable & cleaning nozzle)

Article number 4726
Blum Novotest
Not in stock Not in stock

Keep me updated

Unfortunately, the product is currently sold out. Leave your details and you'll receive an e-mail when it's back in stock.

General conditions
Quantity 3 - > 5,00 % on the retail price of 2.128,00 2.021,60
Quantity 5 - > 10,00 % on the retail price of 2.128,00 1.915,20
2.128,00 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products

This 3D Tool Setting Probe from BLUM-NOVOTEST is the most precise and high end Tool Setting Probe  we provide. It is for the demanding customer, who needs an industrial solution. This probe is very precise 0,4um repeating accuracy. By default we include the cleaning nozzle, this allows you to clean the measuring surface with compressed air, before you do a measurement. (you do need to order a pneumatic valve and some other components to make this work) This probe has about 10mm extra stroke after the trigger point, this allows you to measure at high speeds.

Component Features:

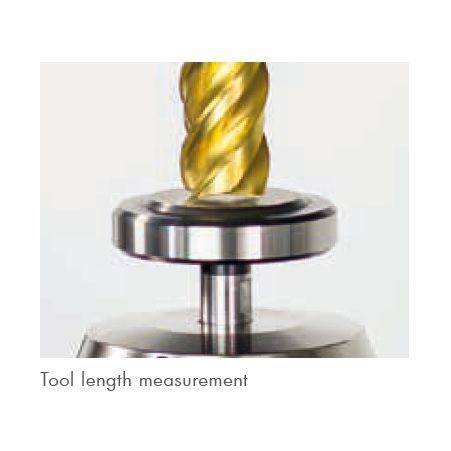

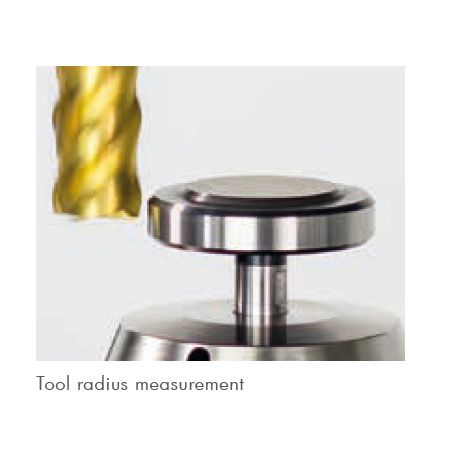

  • Reliable tool length and radius measurement and tool breakage detection under the most adverse conditions
  • Repeatability 0.5um
  • Maximum probing speed 2000mm/min (2m/min) (78 inch/min)
  • Minimum Tool Diameter: >0,1mm (depending on geometry of the tool, probing force must not result in damage to the tool)
  • Degree of protection: IP68
  • Exchangable measuring surface ( plasma nitraded (standard) or carbide surface )
  • Extremely robust
  • Very Low Measuring Force (XY 3.0 N , Z5.2 N)
  • Maximum deflection in XY +/11°
  • Maximum deflection in Z 6mm
  • Low measuring force allows measuring very small or sensitive tools
  • Including cleaning nozzle (you need additional pneumatic parts to make it complete)
  • Including 10 meters of PUR cable and 1,5 meter of spiral shielding hose
  • Including h=14mm Mounting socket
  • Optional:  Mounting sockets up to L=200mm
  • Optional:  Pneumatic parts to make complete set
  • Optional: different type ZX-Speed IR, communicates through infrared transmission (requires also a receiver)
  • Warning: advised pressure for nozzle minimum 3bar (0,3 MPa) maximum 8bar (0,8 MPa)
  • Warning: damage to measuring by short circuit is possible, connect each individual wire to its own terminal
