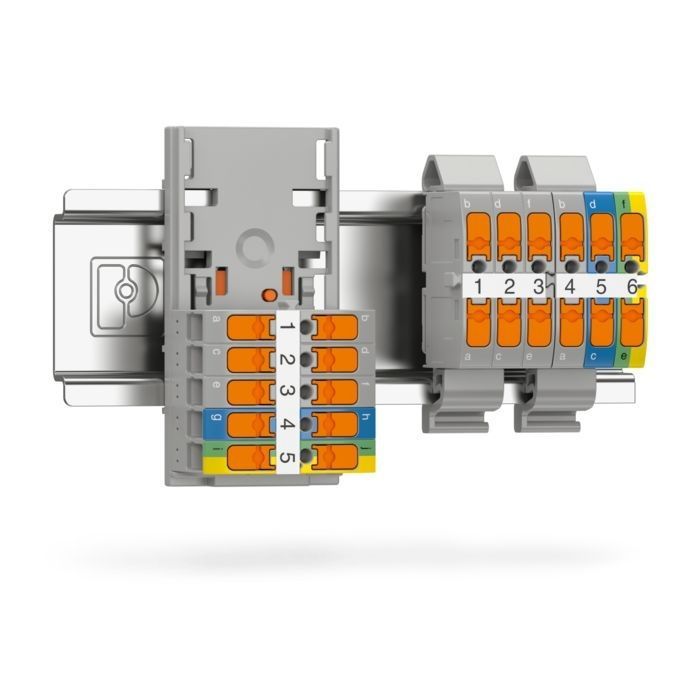

Device terminal block - PTVFIX 2,5-3L/N/GNYE - 1300613

Device terminal block, rated voltage: 450 V, rated current: 24 A, number of connections: 10, number of poles: 5, connection method: Push-in connection, cross-section: 0.14 mm² - 4 mm², mounting type: DIN rail adapter mounting, direct flange mounting, floating, color: gray/blue/green-yellow

Component Features:

• Rated voltage: 450 V
• Rated current: 24 A
• Connection method: Push-in connection
• Number of connections: 10
• Cross-section: 0.14 mm² - 4 mm²
• AWG: 26-11
• Width: 26 mm
• Height: 21.7 mm
• Color: 3xGray/Blue/Green-Yellow
• Mounting method: DIN rail adapter
• Phoenix Contact Article number: 1300613
