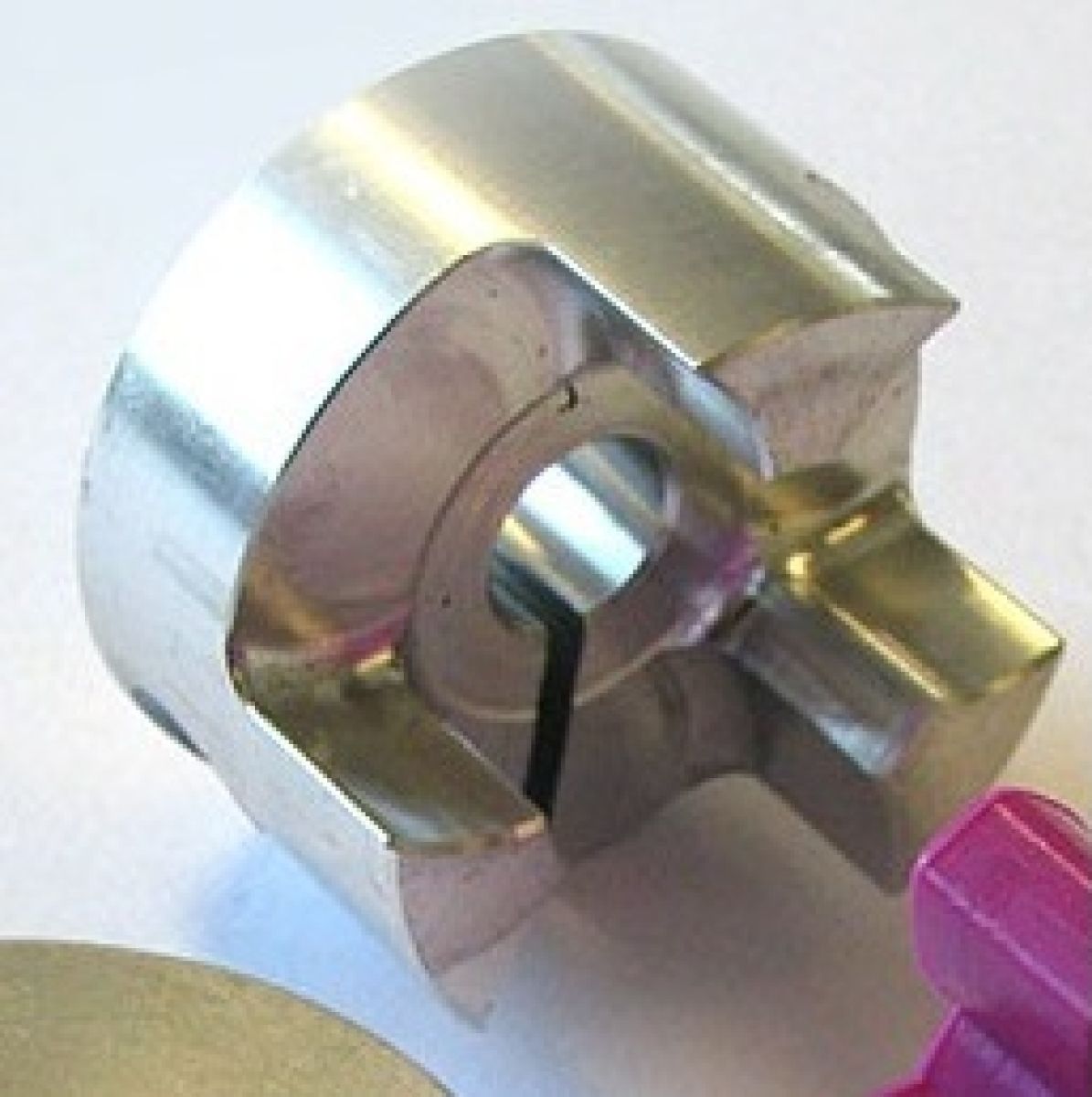

HUB ShaftCoupler DCNC-D32-L32-B16.00mm

Article number 4171
DamenCNC
In Stock In Stock
General conditions
Numbers 5 - > 5,00 % on the retail price of € 13,00 € 12,35
Numbers 10 - > 10,00 % on the retail price of € 13,00 € 11,70
Numbers 20 - > 20,00 % on the retail price of € 13,00 € 10,40
Numbers 50 - > 30,00 % on the retail price of € 13,00 € 9,10
13,00 Excluded VAT Price per piece
Description
Attachments
Discount
Compatible HUBS
When using ballscrews we recommend to use these shaftcouplings. Since they are backlash free, they match in terms of performance with ballscrews. The rated torque is 12,5Nm so in theory it could be used with our 12nm motor. In practice we use this coupling for the smaller motors (NEMA17 and NEM23) . It is possible to make combinations of different shaft sizes. So for example if your steppermotor has a shaft of 6.35mm and your ballscrew has a size of 8mm, order one hub of 6.35mm and one hub of 8mm. Of course for each 2 hubs you need one spider.

Component features:

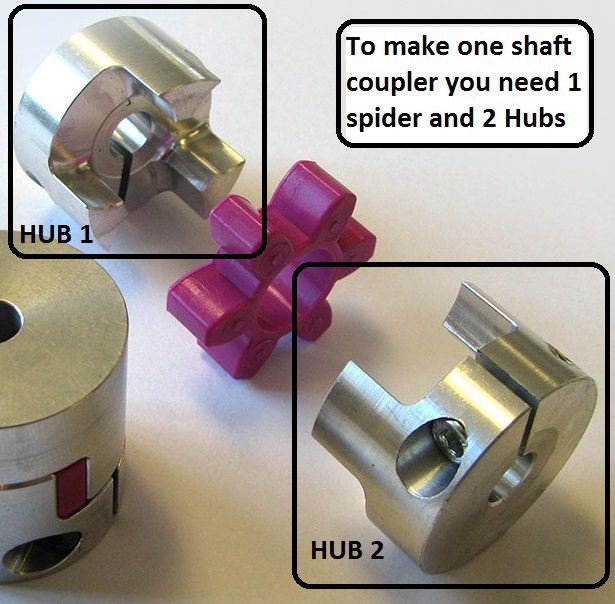

  • Scope: 1 HUB. A complete shaftcoupler consists of 2 HUBs and 1 spider
  • Coupling interchangable, so for example 6,35mm to 10mm coupling is possible
  • Outer Diameter 32mm
  • Length 32mm
  • Bore diameter from 4 to 16mm
  • Custom bore diameters possible on request
  • Max torque (Red Insert) 25Nm
  • Nominal torque (Red Insert) 12.5Nm

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

4171_DCNC_D32L32_STEP203.stp 4171 DCNC_D32L32_STEP203
