NEMA 23 Motor Bracket (MBA10-C) for FK10

Article number 3953
In Stock In Stock
General conditions
Amount 3 - > 5,00 % on the retail price of 35,99 34,19
Amount 5 - > 10,00 % on the retail price of 35,99 32,39
Amount 10 - > 15,00 % on the retail price of 35,99 30,59
Amount 20 - > 20,00 % on the retail price of 35,99 28,79
35,99 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products

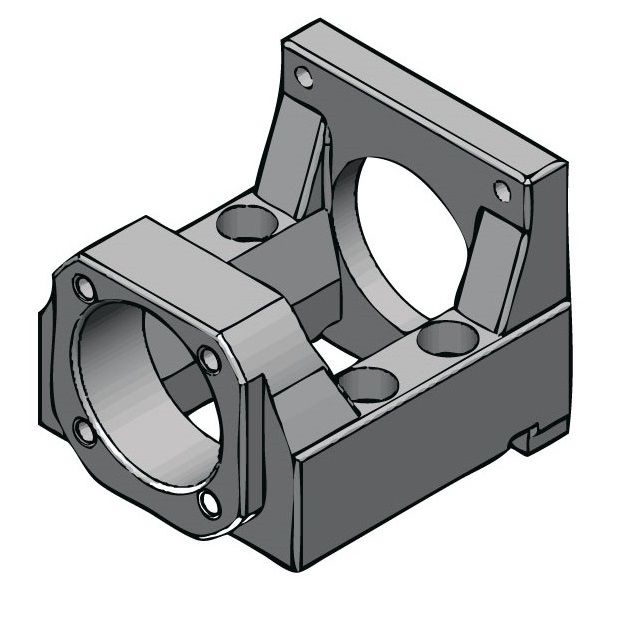

Motor Bracket made from steel. It has a NEMA23 flange that is compatible with most NEMA 23 Steppermotors. The bracket has datum surface on the bottom, that also has two 6mm dowel pin holes. These can be used to get the perfect alignment when placing back on a machine frame. Also the alignment between bearing and flange is within 0,02mm since the machining is done in one operation. When building a CNC machine or other special machine, this is an interesting part to have, since it saves a lot of time, that is normally spent on making a bracket. This bearingblock is compatible with the BF10 floating bearing block, (same height from datum surface). Most commonly the bearing block is used in combination with 16mm ballscrews.

Component features:
  • Compatible with NEMA23 frame size steppermotors (DamenCNC Leadshine etc)
  • Steel Housing
  • High Quality Product Made in TAIWAN
  • 4 x M4x12 DIN912 bolts included for mounting the steppermotor

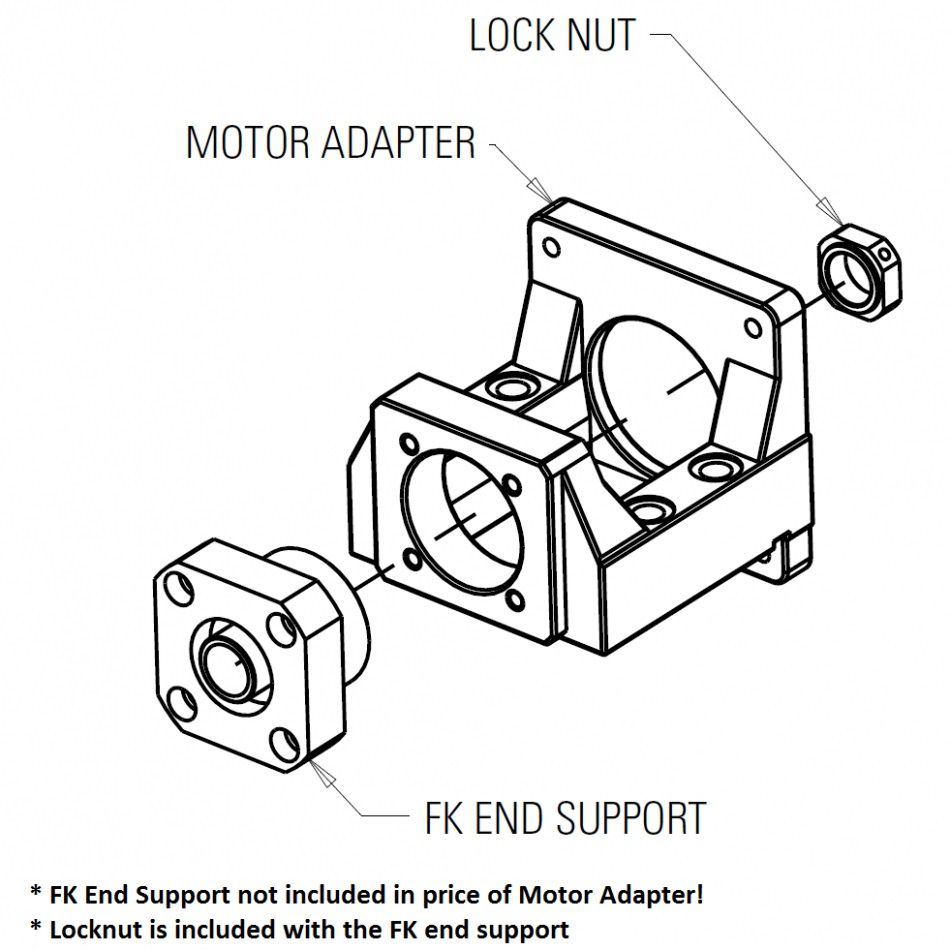

  • 4 x M4x12 DIN 912 bolts included for mounting the FK10 fixed bearing block
  • FK Fixed Bearing not included (don't forget to order it! FK10)
  • Most often used with ISEL 16mm Ballscrew or HIWIN 16mm ballscrews

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

3953_NEMA_23_Motor_Bracket_(MBA10-C)_STEP214.stp 3953 NEMA 23 Motor Bracket (MBA10-C) STEP214
