PLC S7-1200 CPU 1214C DC-DC-DC (6ES7214-1AG40-0XB0)

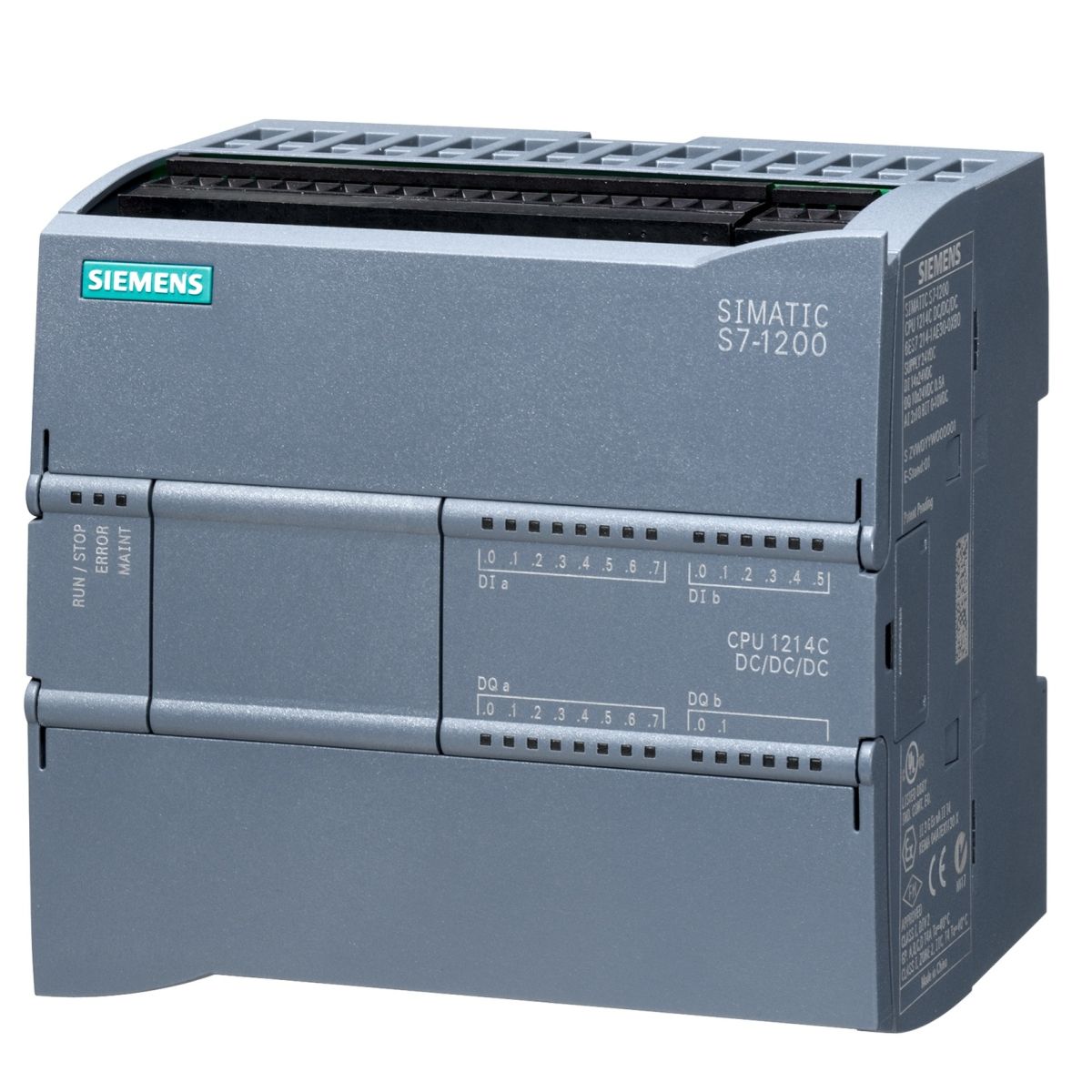

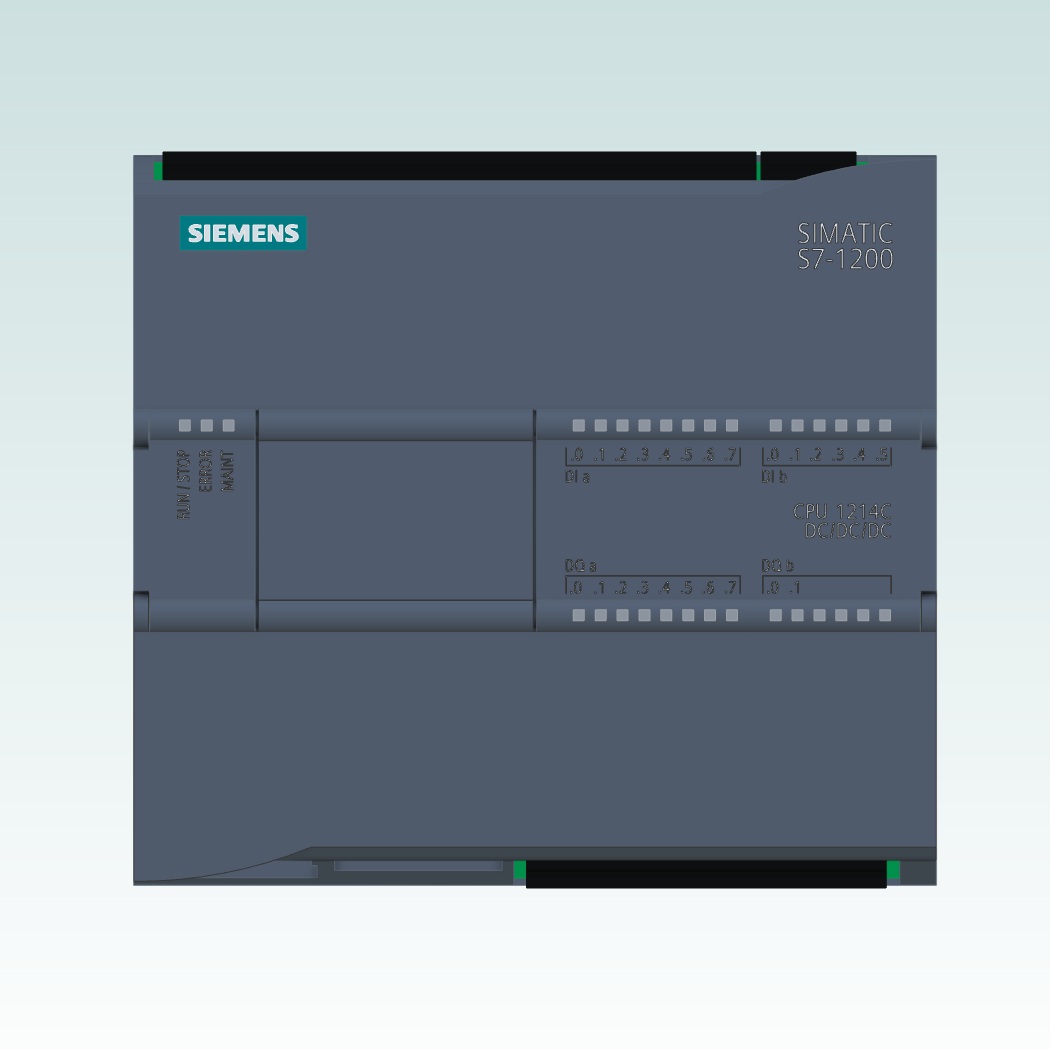

Siemens CPU 1214C - 6ES7214-1AG40-0XB0. The SIMATIC S7-1200 compact CPU 1214C DC/DC/DC - 6ES7214-1AG40-0XB0 from Siemens has 14 digital inputs, 10 digital outputs, 2 analog inputs. The supply voltage is 20.4...28.8 V DC. A PROFINET port is available for communication and programming. Thanks to the 100 kB memory, the compact CPU 1214C DC/DC/DC - 6ES7214-1AG40-0XB0 is ideally suited for many control tasks in all industrial sectors.

At DamenCNC we use this as a basic all round PLC module. It has enough inputs and outputs to handle the more complicated tasks. Yet the price is still acceptable. 4 outputs can be used as PTO. This works great to position stepper motors from Leadshine or servodrivers from Delta. Or other brands that can handle a 24vdc pulse train input.

Most often clients use a Delta or a Weintek HMI to make a user interface.

Component features:

• Analog inputs: 2 (0-10v)
• Analog outputs: 0
• Digital inputs: 14 (24VDC) (6 High Speed Counting)
• Digital outputs: 10 (24VDC)(4 100 kHz pulse train, for PTO function)
• Industrial Ethernet HW interfaces: 1 x ProfiNET RJ45
• Required Siemens Software (STEP 7 Basic)
• Approvals: CE,cULus,UL,UKCA
• Supply voltage 24V DC
• Input voltage 24V DC
• Permissible voltage range 20.4...28.8 V DC
• Input current 1 mA
• Continuous current outputs 0.5 A (50mA)
• Switching frequency: 100 kHz
• Resolution 10 bit
• Short-circuit protection: No

Mechanical data:

• Dimensions (W x H x D)110 x 100 x 75 mm
• MountingDIN rail 35

Environmental conditions:

• Ambient temperature min.-20 °C
• Ambient temperature max.60 °C
• Protection class: IP20
