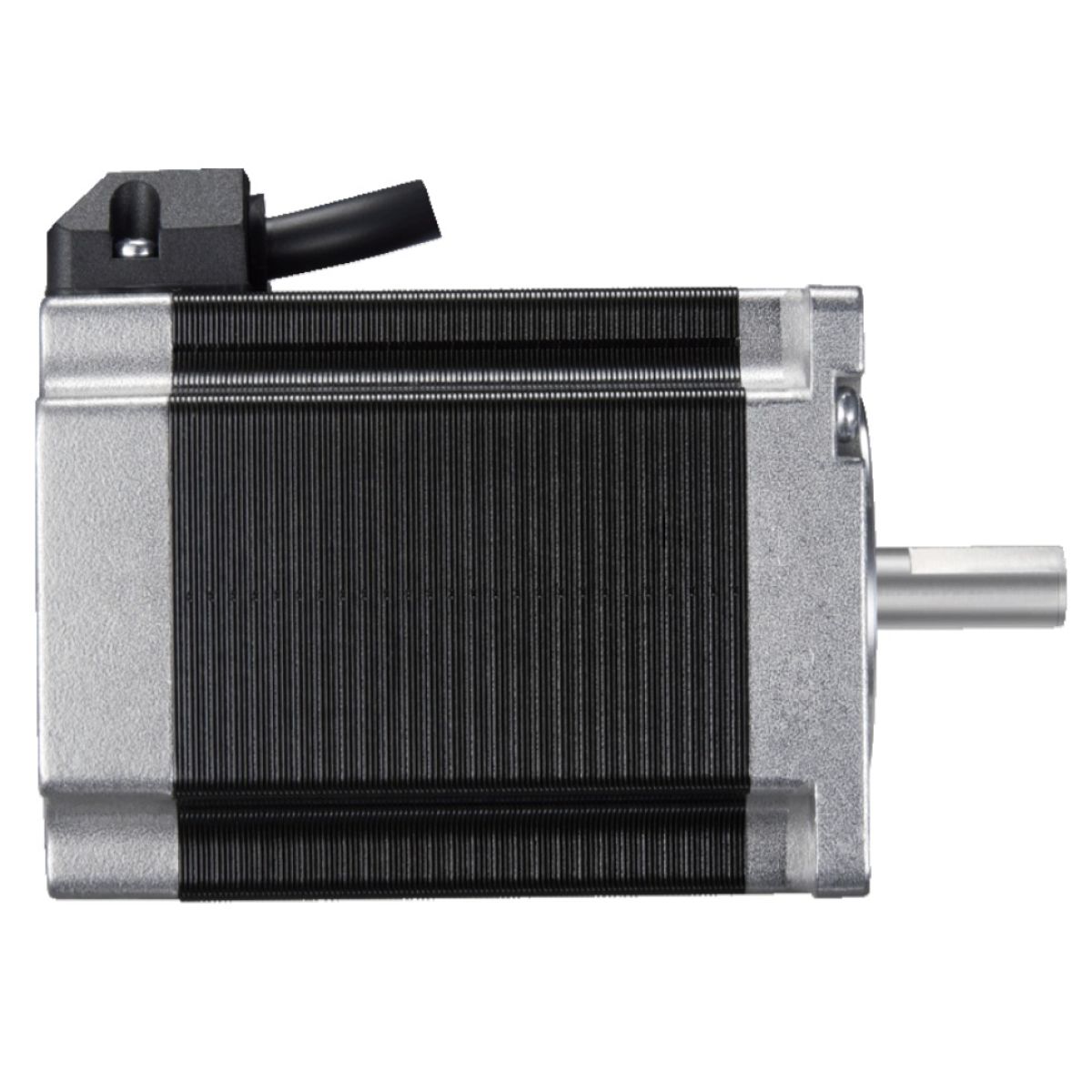

Stepper Motor NEMA23-3.1Nm D57CM31

Leadshine Stepper Motor D57CM31. These stepper motors are made of high-quality materials compared to other stepper motors on the market. They offer superior performance in many respects, including higher torque across all speed ranges, higher precision, reduced heat buildup, and reduced vibration. We recommend using this motor with an EM870S driver.

Component features:

• Holding torque: 3.1 Nm
• Flange size: NEMA 23
• Type: 2-phase bipolar stepper motor
• Protection rating: IP40
• Connection: 4 wires
• Rated current: 5 A / phase
• Shaft diameter: 8 mm
• Built with high-quality materials, including bearings and shafts from Japanese manufacturers
• High precision, low motor heat buildup, and low vibration
• Leadshine Part number: D57CM31
